Premium Perkins Power Solutions | Uncompromising Reliability

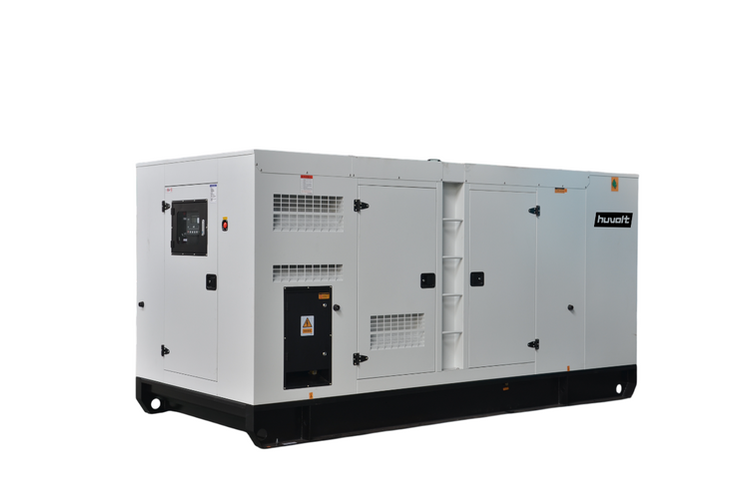

480kW Diesel Generator for Sale | HUVOLT H480 | 480kW Perkins Engine
Industrial Reliability That Protects Your Operations
When manufacturing downtime costs £15,000+ per hour, the Huvolt H480 diesel generator's 480kW prime power (600kVA) and 520kW standby capacity (650kVA) becomes your operational insurance policy. Built around the proven Perkins 2806C-E18TAG1A engine and precision Stamford HCI544E alternator, this generator eliminates the devastating financial impact of unexpected power failures in industrial facilities, commercial complexes, and critical manufacturing processes.
The smart investment for manufacturers and facility managers who understand that generator cost pales beside production loss.
Ready to eliminate power failure risk from your operations? Contact us for detailed specifications and delivery consultation.
Key Features & Benefits
- Genuine Perkins Engine: World-renowned reliability with global parts availability
- Premium Stamford Alternator: Superior power quality and voltage stability
- ABB Circuit Breaker: Industrial-grade protection with leading reliability
- DeepSea DSE8610 Control System: Advanced monitoring and synchronization capabilities
- Factory Tested: Each unit undergoes rigorous testing before shipment
- Global Compliance: Engineered to meet international standards
General Specifications
| Model | Huvolt H480 |
| Prime Power Rating | 480kW (600kVA) |
| Standby Power Rating | 520kW (650kVA) |
| Frequency | 50Hz (60Hz available on request) |
| Voltage | 400V |
| Rated Current | 864A |
| Phase | Three Phase (4-wire) |
| Power Factor | 0.8 |
| Voltage Regulation - Steady State | ≤±0.5% |
| Voltage Regulation - Instantaneous | ≤±15% |
| Voltage Regulation - Waveform Distortion | ≤5% |
| Voltage Regulation - Recovery Time | ≤1.5sec |
| Frequency Regulation - Steady State | ≤±2% |
| Frequency Regulation - Instantaneous | ≤±5% |
| Frequency Regulation - Recovery Time | ≤3sec |
| Frequency Regulation - Waveform Stability | ≤±0.5% |
| Fuel Consumption (100% load) | 205g/kW.h |
| Dimensions (L×W×H) | 4100 × 1600 × 2200mm |
| Weight | 4600kg |
Engine Specifications
| Engine Make | Perkins |
| Engine Model | 2806C-E18TAG1A |
| Engine Type | Four-stroke, waste gas turbine boost, direct spurting type |
| Configuration | 6-cylinder, inline |
| Displacement | 18.1L |
| Bore × Stroke | 145mm × 183mm |
| Aspiration | Turbocharged with direct injection |
| Engine Speed | 1500r/min (50Hz) |
| Governor | ECM (Electronic Control Module) |
| Cooling System | Water-cooled with belt-driven cooling fan and safety shield |
| Lubrication Oil Capacity | 55L |
| Engine Protection | Low oil pressure, high temperature protection |
| Environmental Rating | Operational up to 40°C ambient temperature |
Alternator Specifications
| Alternator Brand | Stamford (UK) |
| Alternator Model | HCI544E |
| Type | Brushless with AVR (Automatic Voltage Regulation) |
| Insulation Class | H degree |
| Protection Class | IP23 |
| Connection | Three phase, four wire |
| Telephone Interference Factor (TIF) | <50 |
| Telephone Harmonic Factor (THF) | <2% |
| Excitation System | Self-excited |
| Construction | Single bearing design |
Warranty Information
Backed by a comprehensive 12-month/1000-hour warranty and our responsive global support network. Dedicated technical support available, with fast-track spare parts service and worldwide shipping capabilities.
